One-Stop Solution ELECTRONIC MANUFACTURING SERVICES

Printed Circuit Board Assembly Service

There is really only one company to contact when you have PCB assembly needs, and that's FASTPCBA. Printed Circuit Board Assembly (PCBA) is one of our core services FASTPCBA. From multi-layered to flexible printed circuit boards, FASTPCBA is your one-stop shop.We provide our customers with PCB solutions and services worldwide. especially more than 80% printed circuit board are exported to oversea market. We have full of confidence to meet your quality level.

Check out this list of some of the high-quality PCB assembly services we offer:


1. One-Stop Fabrication and Assembly:
Fast, high precision, complicated, high quality a turnkey start-to-finish solution : PCB Manufacturing + Components Sourcing + PCB Assembly + Testing, meets all your needs.


2. Multiple PCB Assembly Services:
SMT, THT, Mixed Assembly, Package on Package (POP), Rigid PCBs, Flexible PCBs, Rigid-flex PCBs, HDI PCBs, Gold-Plated PCBs, High Frequency PCBs, etc. - if there's a type of printed circuit board that can be assembled, we almost surely do it.


3. Flexible Volume Assembly Alternatives:
• Prototype PCB Assembly: See how well your PCB design works before generating a large order. Our quality prototype PCB assembly allows us to deliver a quick prototype, so you can identify any potential challenges in your design fast and optimize the quality of your final boards.

• Low-Volume, High Mix PCB Assembly: If you require a number of different boards for specialized applications, FASTPCBA Is your best choice.

• High-Volume PCB Assembly: We are equally as skilled at cranking out large PCB assembly orders as we are at delivering small ones.

• Consigned & Partial PCB Assembly: Our consigned PCB assembly services meet IPC Class 3 standards, are ISO 9001:2015-certified, ISO 14001:2015-certifiedand are RoHS-compliant.

• Full Turnkey PCB Assembly: Also ISO 9001:2015-certified, ISO 14001:2015-certifiedand are RoHS-compliant, our turnkey PCB assembly allows us to take care of your entire project from start to finish, so you can step in and start taking advantage of the finished product right away.

4. Components Sourcing:
We have years of experience and stable relationships with authorized electronic components manufacturers and distributors, we can make purchase in full accordance with the customer's designated supplier. Can also help customers reviwe and improve the supply chain, identify the specifications of electronic components, lower the cost and avoid the introduction of any defective products. All parts go through 100 percent quality inspection before use, so you always get real, quality parts.


Comprehensive Quality Assurance

There is no shortcut for quality,and our goal just is to make well every printed circuit board. We have imported the advanced machinery from US,Japan,German and Israel to improve our production and technical ability.We have set a great example the PCB field of flying probe testing,buried and blind via and special controlled impedance. Finished PCB Assemblies are checked for proper component placement and functionality with a variety of methods including AOI Inspection, In-Circuit testing, and X-Ray inspection. We have a highly developed R&D division which has helped our factory successfully produce mechanical micro via,high density impedance and HDI.

Advanced Equipment:

Tin Paste Printing Machine

Reflow Machine

Wave Soldering Machine

YAMAHA Surface Mount Machine

MYDATA Surface Mount Machine

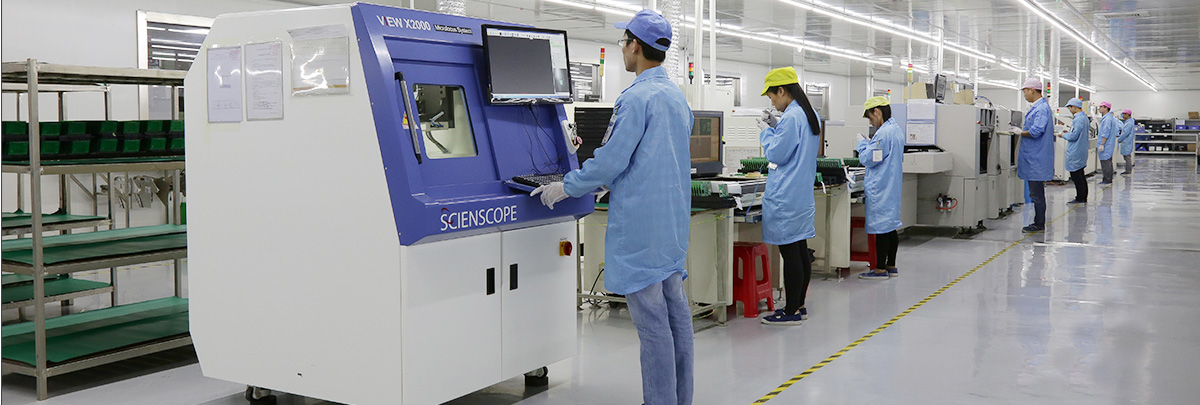

X-RAY Detector

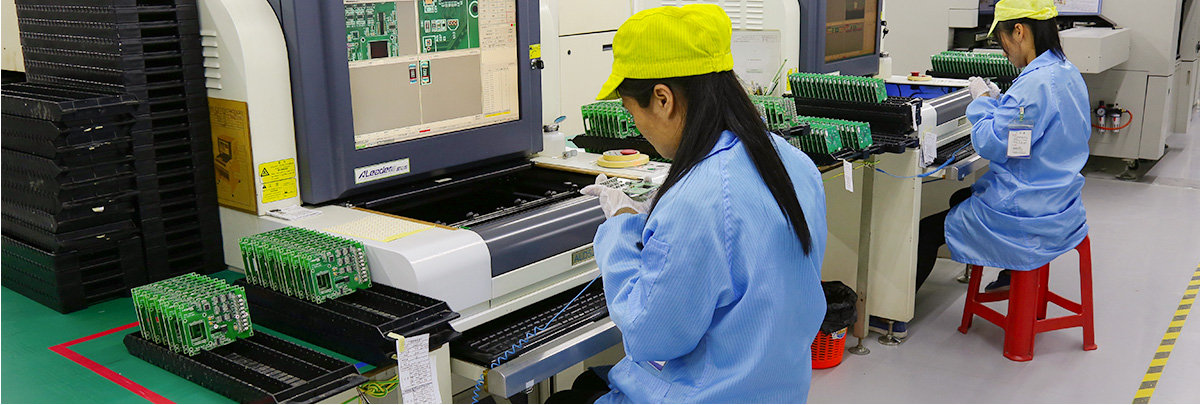

AOI Equipment

Ultrasonic Cleaning Machine

Three Anti-paint Spraying Machine

SMT Material Counting Machine

Dry Oven

Transportation Vibration Testing Machine


ICT and Functional PCBA Testing

FASTPCBA is highly process focused with an adherence to J-STD-001 standards. All PCB assemblies are verified for part-placement accuracy; the use of critical checks such as signal integrity, functionality and performance to test specifications are fully incorporated into our printed circuit board assembly testing procedures. Comprehensive PCBA testing capabilities include functional circuits assembly testing equipment and in-circuit testing (ICT).

PCBA Testing With Multi-step Verification

To ensure the highest quality, FASTPCBA provides functional testing and in-circuit testing (ICT) services. Our test technicians and quality engineers are highly skilled, well-trained and will assemble and inspect to IPC-610 and J-STD-001 standards. Our manufacturing facilities and printed circuit board assembly processes have been audited and certified to these standards.
Once a PCBA is fitted with all necessary components and passed through the SMT assembly line, it is verified for compliance with customer CAD data using an inline AOI machine. Boards with bottom terminated components will go through x-ray inspection to ensure part-placement accuracy. Each assembly may then be subjected to in-circuit testing and/or functionally tested to customer specifications by a dedicated staff of test technicians.

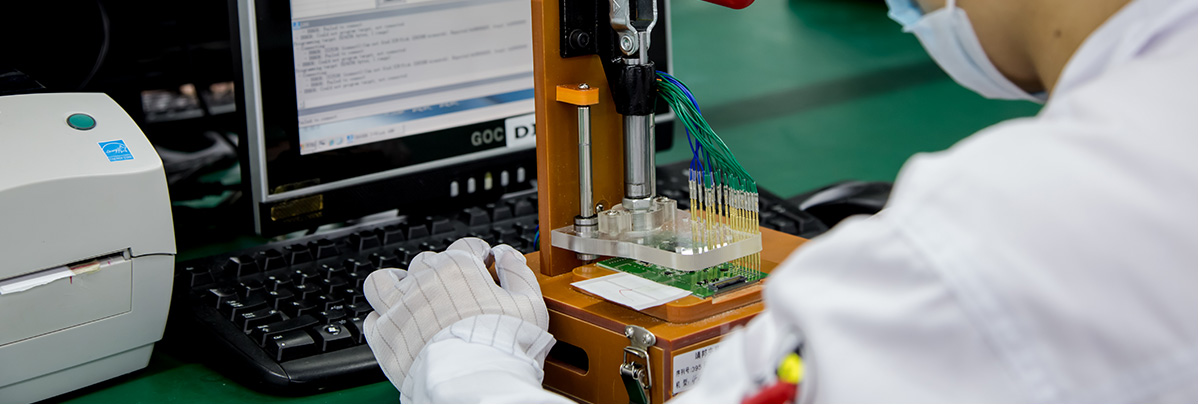

The functional test stands used in the above process can be as simple as a set of electronic measuring devices on a workbench or as complex as a six-foot, rack-mounted, integrated testing system. While many customers choose to provide functional test equipment, FASTPCBA engineering staff has full capabilities to design and build customized functional testing systems.

Test, Engineering & PCB Assembly Capabilities:

All Circuit Board PCB Assembly testing and inspections are performed by experienced associates and are individually marked and recorded for accurate traceability.


FASTPCBA Detailed Assembly Capabilities Are Listed In the Table Below:

Feature

Capability

Quality Grade

Standard IPC 3

Order Quantity

1pc - 10,000+pcs

Build Time

1 - 3 days, 1 - 3 weeks, or scheduled deliveries PCB Spec Requirements

Max board size

700x460 mm

Board Type

Rigid PCBs, Flexible PCBs, Rigid-flex PCB, Metal core PCBs, HDI PCB, Gold-Plated PCB

Surface finish

HASL, ENIG, immersion gold, immersion silver, immersion tin, OSP…

Assembly Types

Surface mount
Thro-hole
Mixed technology (SMT & Thru-hole)
Single or double sided placement
Conformal coating
Shield cover assembly for EMI emission control

Solder Type

Lead-free - RoHS

Parts Procurement

full accordance with the customer's designated supplier.
Can also help customers reviwe and improve the supply chain

Function Test

100% Functional test

PCBA Testing

X-ray,AOI Test,Functional test

PCB outline

Square,circle,irregular(with jigs)

Sub-assembly

Plastic,metal,screen


Got a Project Ready for Assembly?

We are ready to provide you with a high-quality, one-stop-shop experience for any and all of your PCB assembly requirements right now.
Please fill out the form below (or attach your Gerber files / Bom list By email: pcba23@pcb-smt.net), to get a free quote on PCB assembly services, one of our helpful staff will contact you shortly.
Pls double check your email if correct. Pls write your Company too so that you can get better services, Thanks.
