SMT manufacturing fast turn pcb assembly circuit board maker

FASTPCBA Technology Co., Ltd is a professional PCB manufacturer in China, Shenzhen. With 14 years of development, FASPCBA turns into a first class manufacturer of HDI PCB and automotive PCB assembly, with production capability 35,000 square meters. FASTPCBA is providing high quality bare PCB and PCB assembly service,including components sourcing, function test,conformal coating and complete assembly for clients all over the world.

SMT manufacturing fast turn pcb assembly circuit board maker


20 years pcb manufacturing and pcb assembly factory

PCB OEM products parameter:

Article Description Capability
Sercive PCB and SMT assembly with one-stop service
Material Laminate materials FR4, high TG FR4, high frequency, alum, FPC
Board cutting Number of layers 1-48

Min.thickness for inner layers

(Cu thickness are excluded)

0.003”(0.07mm)
Board thickness Standard (0.1-4mm±10%)
Min. Single/Double:0.008±0.004”
4layer:0.01±0.008”
8layer:0.01±0.008”
Bow and twist ﹤7/1000
Copper weight Outer Cu weight 0.5-4    0z
Inner Cu weight 0.5-3   0z
Drilling Min size 0.0078”(0.2mm)
Drill deviation ±0.002″(0.05mm)
PTH  hole  tolerance ±0.002″(0.005mm)
NPTH  hole  tolerance ±0.002″(0.005mm)

Solder mask


Color Green,white,black,red,blue…
Min solder mask clearanace 0.003″(0.07mm)
Thickness (0.012*0.017mm)
Silkscreen Color white,black,yellow,blue…
Min size 0.006″(0.15mm)
E-test Function Test 100% Functional test
PCBA Testing X-ray,AOI Test,Functional test
Pcb assembly one-stop service electronic manufacxturer service
Component sourcing Yes
Certificate IATF16949,ISO9001
Delivery time: PCB 3-12days
PCBA 8-20days
Tolerance of pcb ±5%
Max size of finish board 450*450mm
MOQ NO MOQ (1pcs)
Surface Finish HASL,ENIG,immersion silver,immersion tin,OSP…
PCB outline Square,circle,irregular(with jigs)
package QFN,BGA,SSOP,PLCC,LGA
Sub-assembly Plastic,metal,screen

pcb asembly




10


9 pcb test
FAQ

Q1:What service do you have?

FASTPCBA: We provide turnkey solution including Fr4 pcb fabrication, SMT, plastic injection & metal, final assembly,testing and other value-added service.
Q2:What are the main products of your pcb production?

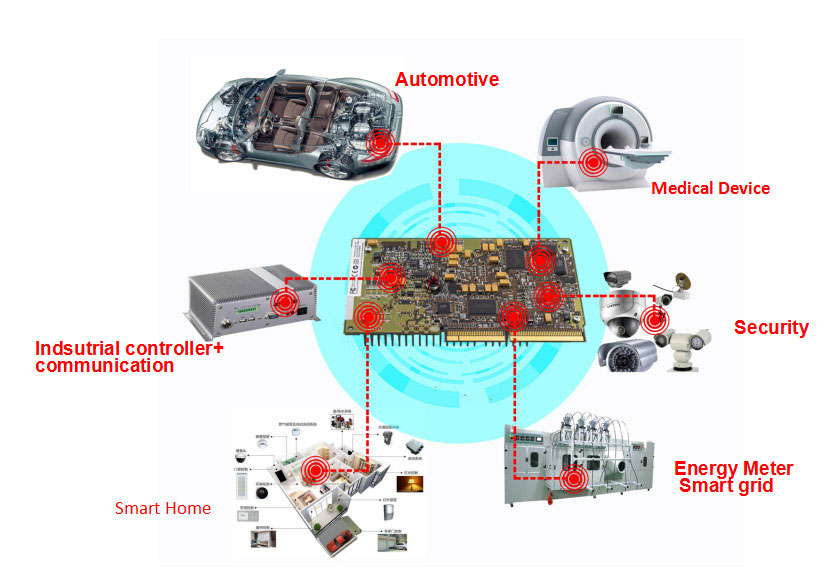

FASTPCBA: Our Fr4 pcb services are mainly for the industries including Medical,Automotive,Communication.
Q3:Is FASTPCBA a factory or trade company?
FASTPCBA: FASTPCBA is a factory with electronic circuit board factory located in China
