Advanced PCB Equipment

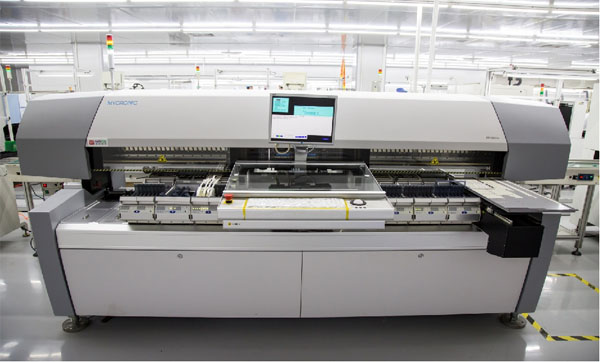

  • MYDATA-MY200 (MY100) high-speed placement machine

    MYDATA-MY200 (MY100) high-speed placement machine from Sweden, bare metal of 2.43 million yuan, more than three million machines (seventy-eight warehouses). This equipment comes with an air compressor. It does not need an external air compressor. It can stack 0201 materials without stacking 10 pieces. The placement precision is very high. It is one of the most accurate placement equipment in all placement machine systems. It has a repeatability of 15μm/3σ, a corner resolution of 0.009° and a corner accuracy of 0.03°. Z-axis resolution: 2 μm. Only electronic research institutes and military units use such machines.

    pcb equipment

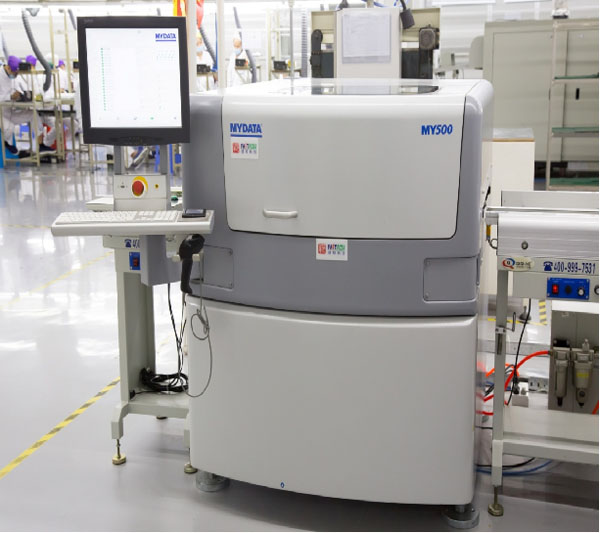

    MYDATA Printing machine

    MYDAT(pcb equipment)solder paste printer: After offline editing and designing the program (just over ten minutes), the program can be transferred to the device through the network, and the solder paste can be directly sprayed on the PCB pad like a printer. The thickness of the solder paste can be flexible. Control, uniform thickness. At present, only Foxconn ,Zhongxing Huawei has this machine, and Sweden imports equipment worth US$330,000.

    pcb equipment

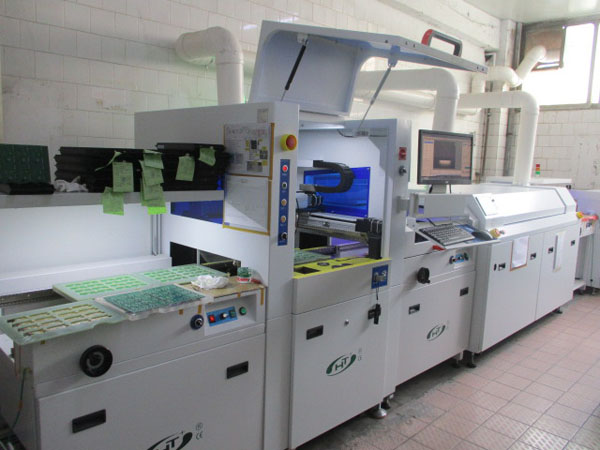

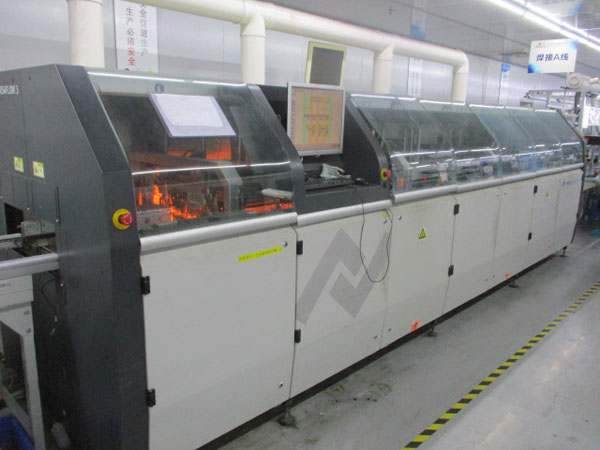

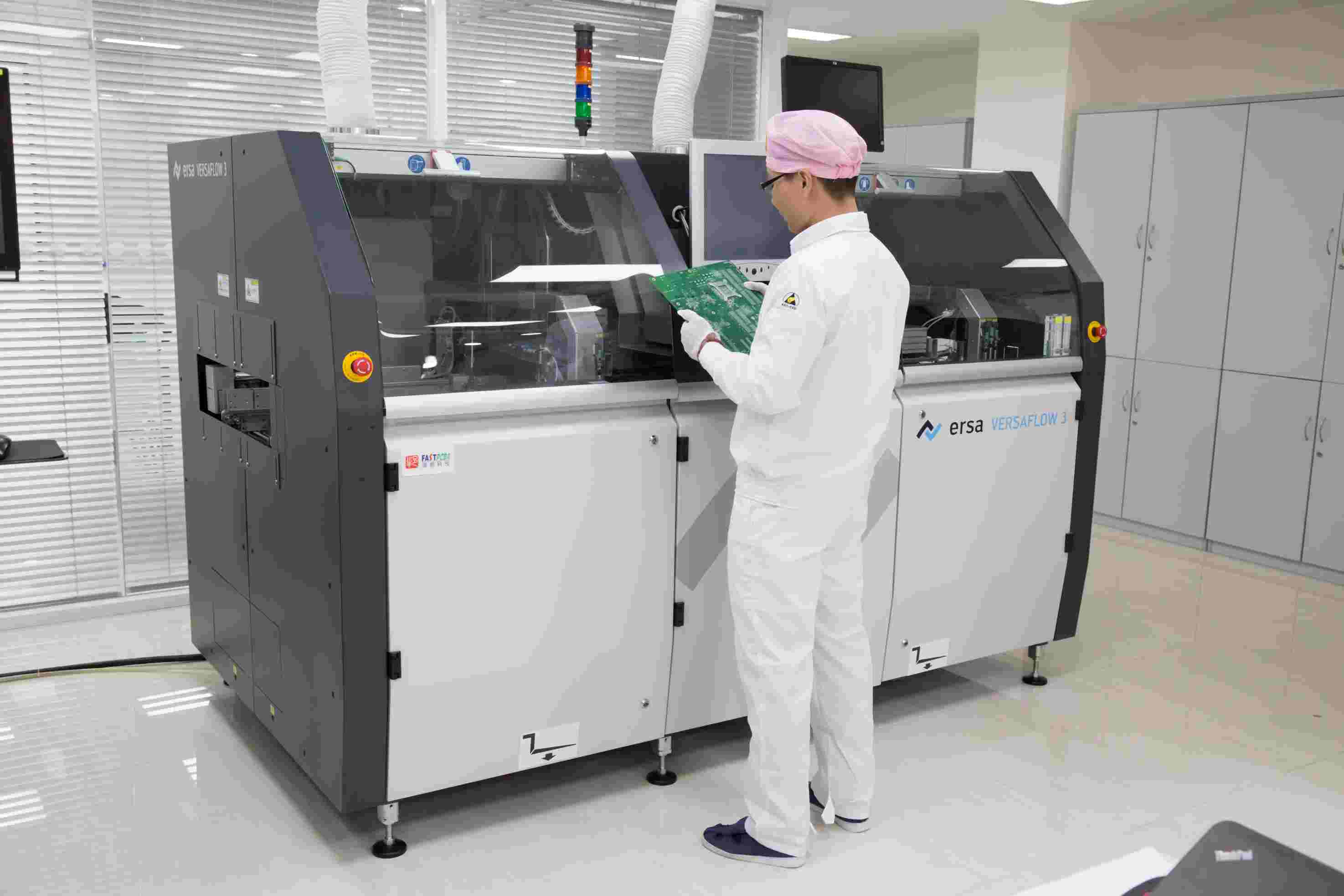

    DIP automatic spray wave soldering machine

    Fully automatic spray wave soldering machine. This device is used to spray flux on the pads of the PCB before soldering. The purpose is to remove the pad oxide and solder the component pads and pads for better soldering!

    selective wave soldering

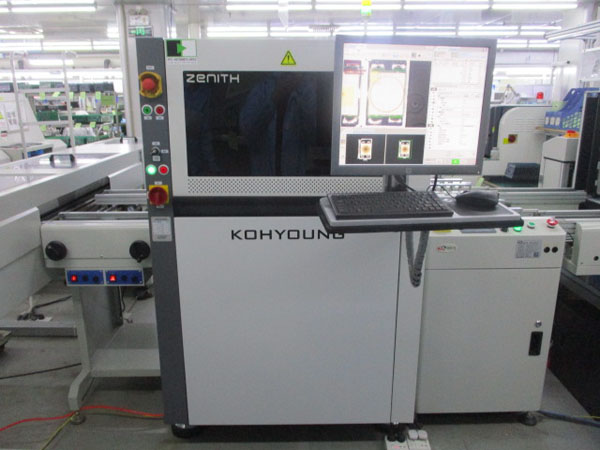

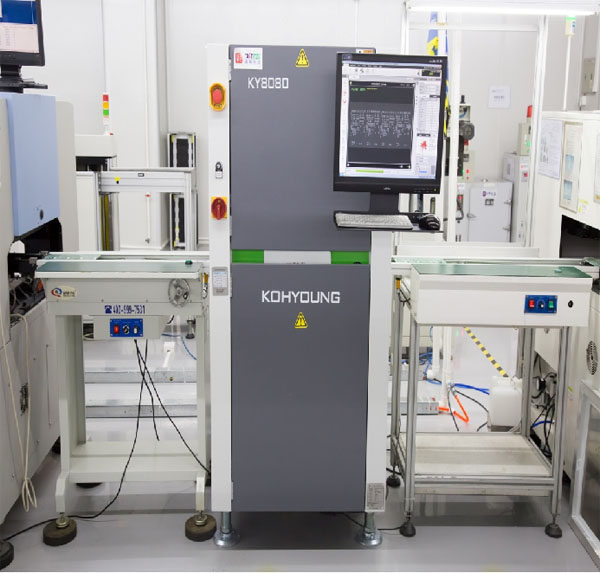

    Solder paste detector

    In the SMT industry, the quality of the post-furnace welds, of which 70% of the weld defects are caused by the printing station. The testing equipment used by our company is Korea KOHYOUNG (KY8080), which is the current leader in the industry. It can detect whether the solder paste is missing, short circuit, offset, area size, volume height, tip and solder joints and so on .

    Quality pass rate:99%

    Solder paste detector

    Online AOI monitor

    The French VI brand detector is now made of cast iron in Taiwan, and this French is a marble base worth more than one million RMB. After the placement machine is completed, it flows into the next process (meaning, the detector), and the main items detected by the inspection device are: missing stickers, mislabeled, offset (offset), polarity checked, and component damage.

    Online AOI

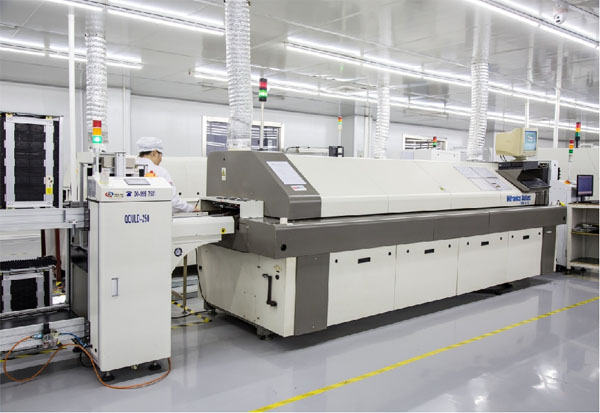

    Flextronics Ten Zone Reflow Machine

    In the United States, Flextronics 10 temperature zone reflow soldering machine, soltec brand is the apple in the stove, the domestic first-line brand is about 150,000, and our minimum allocation needs 650,000 yuan. With three cooling zones and water tower cooling.

    pcb equipment

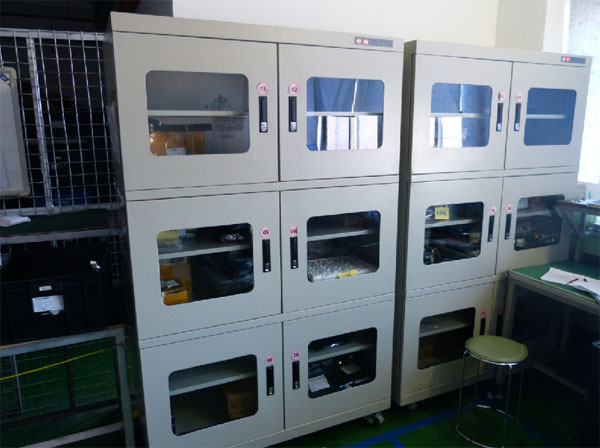

    Damp proof box

    IC, BGA components are stored in a moisture-proof cabinet, constant temperature and humidity, while preventing static breakdown.

    pcb equipment

    pcb Test equipment

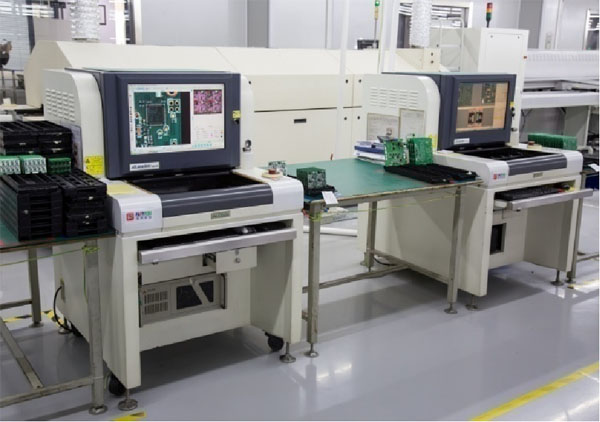

    Alide Offline AOI detector

    After the furnace off-line AOI detector, for the PCBA of the finished furnace, QC uses the off-line AOI 100% full inspection, can check the error parts, few pieces, reverse, vertical parts, virtual welding, partial position, even tin, after the full inspection OK Send QA for sampling.

    pcb equipment

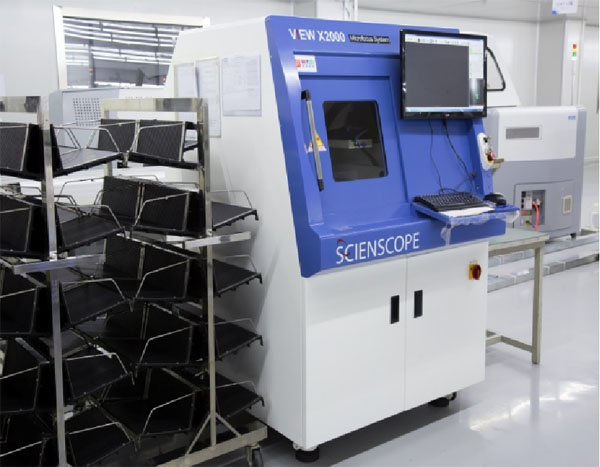

    X-RAY detector

    X-ray (pcb equipment test)inspection equipment can detect the welding condition of BGA, such as short circuit, virtual soldering, solder joint gas.

    X-RAY machine

    60 times Digital electron microscope

    A 60x digital microscope with a value of more than 10,000, for those who are not obvious to the naked eye, can be solved with this device.

    pcb equipment
